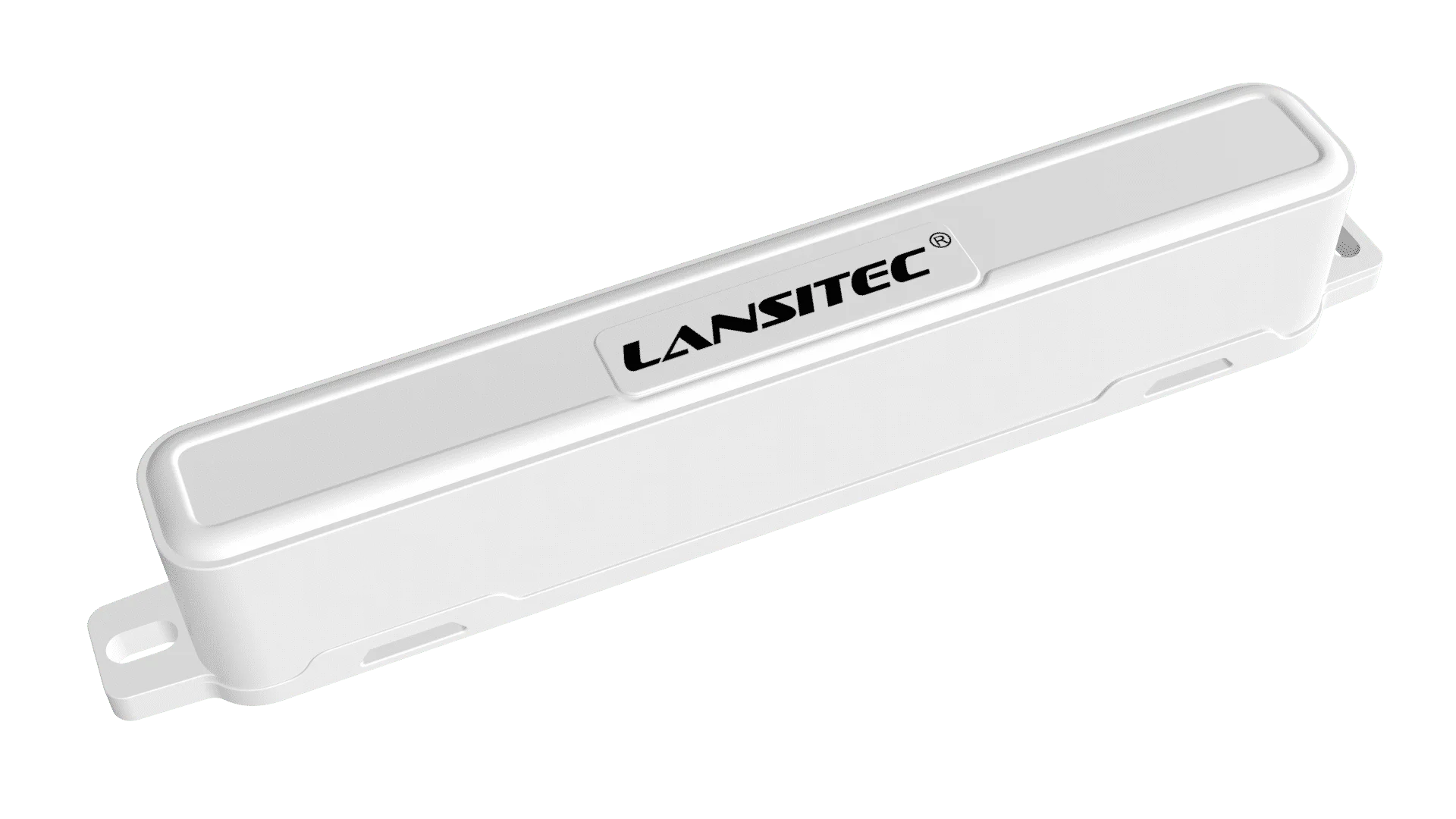

The Lansitec UWB Container Tracker is designed using LoRaWAN and UWB technologies. It calculates the distance with anchors and forward the distance information to a LoRaWAN gateway to calculate its position in the server. The accuracy can be as low as 10cm.
Product Specifications
LoRaWAN Connectivity
Activation Mode
OTAA or ABP
LoRaWAN Protocol
LoRaWAN 1.0.2B
LoRaWAN Band
US915, AU915, EU868, AS923, LA915, RU864, KR920, IN865, KZ865, CN470
LoRa TX power
0 to 20dBm
High TX Power Option
Max. 30dBm and -150dBm receiving sensitivity
LoRa Sensitivity
-139dBm @SF12, BW 125kHz, 434MHz/470MHz
-137dBm @SF12, BW 125kHz, 868MHz/915MHz
Access Quantity
>500 in one LoRaWAN gateway
LoRa Communication Distance
>1.5km in the urban area
Encryption
AES128
UWB
Regions
Europe
US
Japan
S.Korea
Singapore
China
Frequency Band
6.0 to 10.6 GHz
3.1 to 10.6 GHz
7.25 to 10.25 GHz
7.2 to 10.2 GHz
3.4 to 10.6 GHz
6.0 to 9.0 GHz
Receiving Range
Up to 23m
Max. Number of Anchors Supported
8
Physical Parameters
Dimension
198x28x33mm
Ingress Protection
IP68
Operating Temperature
-45°C ~ +85°C
Storage Temperature
-60°C ~ +90°C
Operating Humidity
0% ~ 95% (non-condensing)
Housing Material
PC and ABS
Weight
133g
Power
Standby Current
5μA
Switch
Support
Status LED
Support
Buzzer
Support
Battery
Li/SOCl2 4000mAh x 2
Charging Method
N/A
Battery Life
*Anchor battery life is related to the number of trackers supported
Regions
Badge Tracker
Container Tracker
Asset Management Tracker
Number of Trackers Supported
64 units
192 units
512 units
Anchor Battery Life @ 38000mAh
18 years
10 years
4.8 years
Tracker Battery Life @ 600mAh
37 days
32 days
25 days
Container & Asset Management Tracker Battery Life @ 8000mAh
16 months
13 months
11 months
Function
Adjustable Position Report Interval
5s x n (1 to 65536)
Heartbeat Report Interval
30s x n (1 to 65536)
FOTA over Bluetooth
Support
