LoRaWAN
Tracking Label

Say goodbye to lost shipments and untraceable assets with Lansitec’s ultra-thin Tracking Label. Combining GNSS, Bluetooth 5.0, and LoRaWAN technology, this disposable tracking solution provides reliable indoor and outdoor positioning for packages, pallets, and containers. Whether you’re shipping goods across the globe or simply managing inventory within a warehouse, the Tracking Label’s 3-axis accelerometer and automatic BLE/GNSS switching ensure efficient power use without compromising on accuracy. With up to three years of battery life (based on six GNSS reports per day) and an IP66 rating, this label is built to stand up to harsh conditions and lengthy transit times—giving you the confidence to monitor and manage your assets from end to end.

Features

What Makes it Unique

  • Ultra-Thin & Disposable Design At just 3mm thick, it’s easy to attach to packages or pallets, making it the ideal lightweight, single-use tracking solution.
  • Dual Indoor/Outdoor Tracking Switch automatically between Bluetooth (1–3m accuracy) indoors and GNSS (<2.5m CEP) outdoors for consistent location visibility.
  • Long Battery Life A built-in 2000mAh disposable lithium battery can last over three years under typical usage, significantly reducing maintenance.
  • Intelligent Motion Detection The 3-axis accelerometer detects movement or tampering and adjusts tracking frequency to conserve power.
  • Rugged IP66 Enclosure Safeguards against moisture, dust, and mild impacts, ensuring reliable performance in transit or storage.
  • Low Operating Costs LoRaWAN connectivity removes the need for costly cellular data plans, lowering your total cost of ownership.

Use Cases

Where it Could be Used for

Indoor Asset Tracking Solution

Package & Pallet Tracking

Monitor shipments in real time across multiple carriers, alerting you to potential delays, re-routes, or tampering.

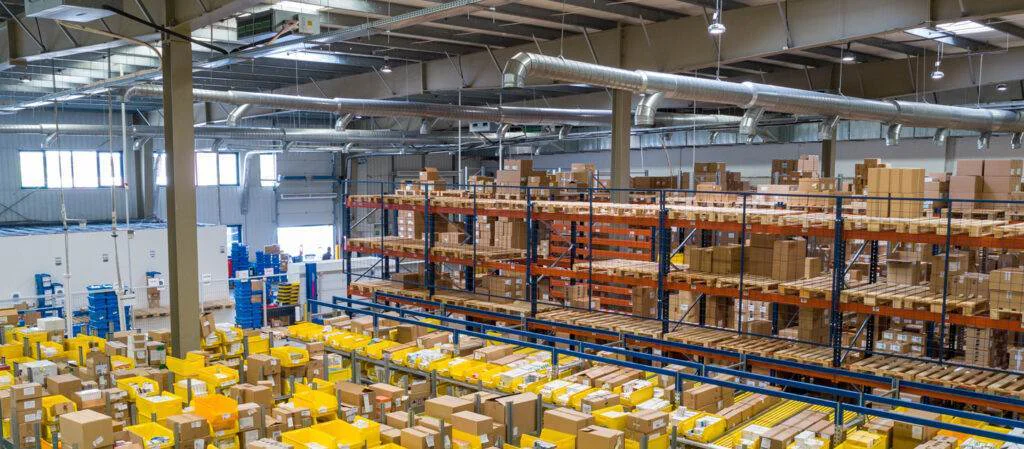

Warehouse Inventory Management with Bluetooth Beacons

Warehouse Inventory Control

Combine the label’s indoor BLE tracking with LoRaWAN coverage to instantly locate items—preventing stockouts or overstock.

Cold Chain Logistic Temperature Monitoring

Cold Chain Logistics

Pair optional environmental sensors with the label to track temperature-sensitive goods, ensuring compliance and preventing spoilage.

Macine or Equipment Rentla

Rental & Leasing Management

Affix a disposable label to equipment or assets on short-term leases, offering accurate usage data and location without long-term commitments or high operational costs.

Sea Container Tracking

Smart Returnable Packaging

Improve asset utilization by tracing returnable containers or crates in real time, minimizing losses and accelerating turnaround times.

Technical Details

Product Specifications

Mechanics

Dimension

120*75*3mm

Operating Temperature

-35°C ~ +75°C

Storage Temperature

-45°C ~ +85°C

Operating Humidity

0% ~ 95% (non-condensing)

Weight

50g

Ingress Protection

IP66

Power

Battery

1800mAh Disposable Lithium Battery

Battery Life

> 3 years @ 6 GNSS reports a day

Operating Current

20μA ~139mA

Connectivity

Bluetooth Protocol

Bluetooth 5.0

LoRaWAN Protocol

LoRaWAN 1.0.2B

LoRa Frequency

US915, AU915, EU868, EU433, AS923, RU864, KR920, IN865, CN470

LoRa Distance

>1km in urban area

LoRa Sensitivity

-139dBm @SF12, BW125kHz, 434MHz/470MHz
-137dBm @SF12, BW125kHz, 868MHz/915MHz

Bluetooth Distance

150m sight distance

Indoor Tracking

Bluetooth, 1~3m accuracy

Outdoor Tracking

GNSS, <2.5m CEP

Functions

3D Accelerometer

Support

Encryption

AES128

Low Battery Alert

Support

Vibration Intensity Adjustment

Support

Operating Mode

GNSS coordinates acquisition frequency adjustable, LoRa communication frequency adjustable, Automatic BLE and GNSS tracking switching

Certification

CE, FCC, RCM
