LoRaWAN
Helmet Sensor

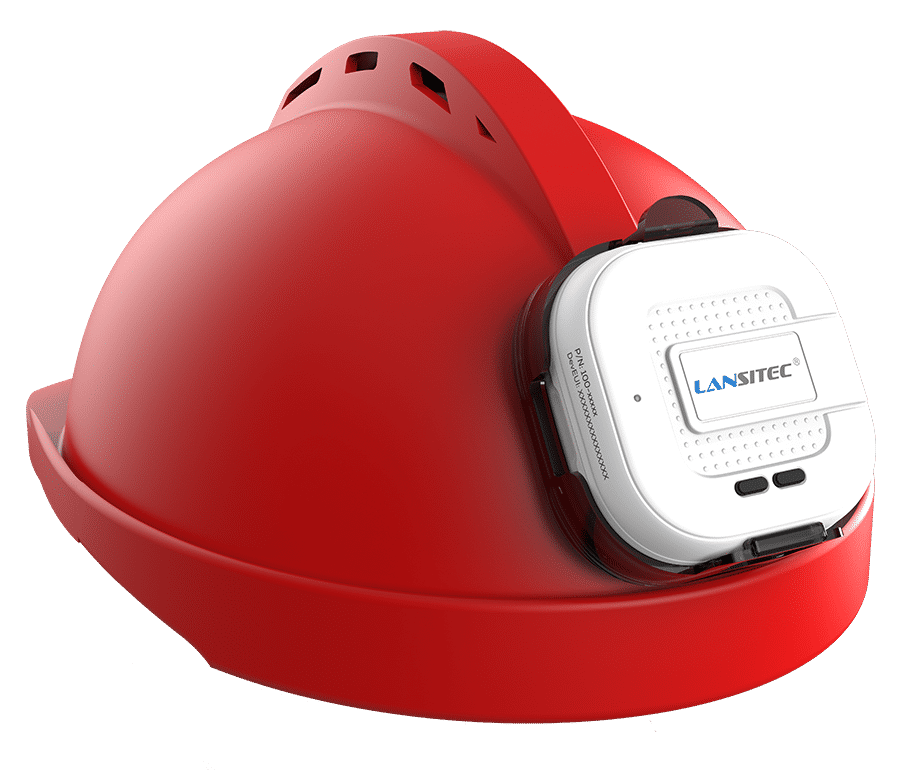

Enhance worker safety and operational efficiency with the Lansitec Helmet Sensor. Combining GNSS, Bluetooth 5.0, and LoRaWAN technology, this sensor supports accurate indoor and outdoor positioning, making it ideal for construction sites, factories, distribution centers, or wide-open environments like ports and airports. From wear detection and fall alarms to zone-based alerts and step counting, the Helmet Sensor proactively monitors worker activities and conditions. Its integrated 3-axis accelerometer helps conserve battery by adjusting tracking frequency based on motion, while the robust IP66 and IK10-rated enclosure stands up to harsh industrial settings. Whether you’re looking to streamline visitor management, protect lone workers, or optimize fleet oversight, the Lansitec Helmet Sensor delivers real-time data and reliable performance where it matters most.

Features

What Makes Helmet Sensor Unique

Comprehensive Sensing & Alerts Wear detection, fall detection, panic alarm, overstay alarm, and zone-based alerts for enhanced worker safety.
Accurate Indoor/Outdoor Tracking Utilize Bluetooth for up to 3m accuracy indoors and GNSS with 2.5m precision outdoors.
Robust Design IP66-rated and IK10 impact protection keeps the device functioning in harsh environmental and industrial conditions.
Efficient Battery Use Built-in 3-axis accelerometer and barometer help manage power consumption by detecting motion and altitude changes.

Simple Integration & Deployment NFC for quick device identification, magnetic charging port, and optional FOTA over Bluetooth streamline setup and updates.
Flexible Connectivity LoRaWAN connectivity provides low-cost, long-range coverage, reducing the need for expensive cellular plans.
Asset Management Compatibility Pair the sensor with BLE tags or beacons to gather location data from additional equipment or tools in the field.

Use Cases

Helmet Sensor Could be Used for

Construction Worker Tracking

Monitor on-site personnel for fall incidents, overstay alerts, and emergency notifications in large construction environments.

Visitor Management

Assign sensors to visitors in industrial facilities, ensuring authorized access and swift response to alarms or unauthorized movements.

Factory Personnel Tracking

Improve shift management, locate workers during emergencies, and monitor time spent in restricted zones to boost operational safety.

Aerial Work Oversight

Track height data and detect sudden movements or falls for elevated work teams, increasing safety compliance.

Hazardous Environment Monitoring

Deploy in mines, chemical plants, or other hazardous locations to detect falls, track exposure times, and enforce safety protocols.

Emergency Evacuation & Rescue

Use real-time location data to quickly locate staff or visitors during crises, reducing response times and improving outcomes.

Relative articles

More Cases for Helmet Sensor

Visitor Management with Smart Helmet using IoT

June 10, 2024

Technical Details

Helmet Sensor Specifications

Mechanics

Dimension

80*80*35mm

Operating Temperature

-10°C~+65°C

Charging Temperature

0°C~+50°C

Storage Temperature

-20°C~+80°C

Operating Humidity

5% ~ 95% (non-condensing)

Weight

90g

Housing Material

ABS and PC

Ingress Protection

IP66

Impact Protection

IK10

Power

Battery

Li-ion rechargeable battery, 1200mAh

GNSS (report interval＞10minutes)

Approx. 8,000 times

Bluetooth Positioning

Approx. 33,000 times

Standby Current

25μA

Max. Current

145mA

Connectivity

Bluetooth Protocol

Bluetooth 5.0, iBeacon

Bluetooth TX Power

-20 to +4 dBm TX power, configurable in 4dBm steps

Bluetooth Sensitivity

-96dBm

Bluetooth Positioning Accuracy

LoRaWAN Protocol

LoRaWAN 1.0.2B, Class A

Activation Mode

OTAA or ABP

LoRa Frequency

US915, AU915, EU868, EU433, AS923, RU864, KR920, IN865, CN470

LoRa TX Power

0 to 20dBm

LoRa Sensitivity

-139dBm @SF12, BW125kHz, 434MHz/470MHz
-137dBm @SF12, BW125kHz, 868MHz/915MHz

LoRa Distance

> 1km in urban area

Encryption

AES128

GNSS

BDS/GPS/GLONASS

GNSS Tracking Accuracy

2.5m

GNSS Cold Start Duration 30s to

30s to 120s

Functions

3D Accelerometer

Support

Barometer

Support, 10cm altitude accuracy

PCB Coating

Water proof coating

NFC Tag (optional)

1KB

Adjustable Position Report Interval

5s x n (0 to 65535)

Heartbeat Report Interval

30s x n (1 to 255)

Switch

Touch button x2

FOTA over Bluetooth

Support

Battery Level Report

Support

Proximity Detection

Support

Asset management with Bluetooth

Report nearby Bluetooth beacons/tags to a LoRaWAN gateway
