Kommerzielles LoRaWAN-Gateway

Indoor

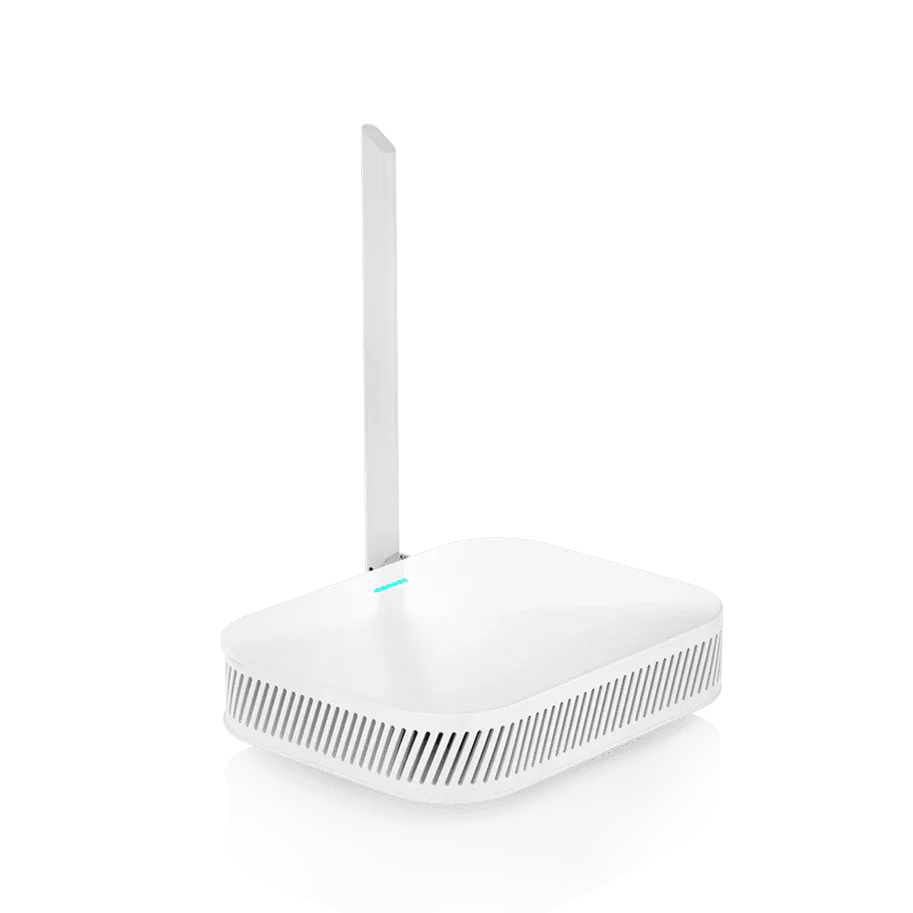

LoRaWAN Gateway

Lansitec Indoor LoRaWAN Gateway is an ideal product for indoor deployment with its built-in Ethernet connectivity for a straightforward setup. Additionally, there is an onboard Wi-Fi setup (supporting 2.4 GHz Wi-Fi) that allows it to be
easily configured via the default Wi-Fi AP mode. The gateway supports power-over-Ethernet (PoE) in cases of a wall or ceiling mounting, where installing additional power lines is not an option. Moreover, the gateway supports LTE uplink communication connections (optional).

LoRaWAN-Gateway für den Innenbereich

Produktspezifikationen

WiFi Feature

Frequency

2.4 GHz (802.11b/g/n)

RX Sensitivity

-95dBm (Min)

TX-Leistung

20dBm (Max)

Operation Channels

2.4GHz: 1-13

Bluetooth Connectivity

Card

SX1302 Mini PCIe card

Channels

8 Channels

RX Sensitivity

-139dBm (Min)

TX-Leistung

27dBm (Max)

Frequency

EU433/CN470/EU868/US915/AS923/AU915/IN865/KR920

Cellular Feature

Supports Quectel EG95-E / EG95-NA (IoT/M2M-optimized LTE Cat 4 Module)

EG95 -E for EMEA Region:

LTE FDD: B1/B3/B7/B8/B20/B28A
WCDMA: B1/B8
GSM/EDGE: B3/B8

EG95 -NA for North America:

LTE FDD: B2/B4/B5/B12/B13
WCDMA: B2/B4/B5

Mechanik

Stromversorgung

DC 12 V - 1 A, PoE (IEEE 802.3 af), 36~57 VDC

Energieaufnahme

12W (Typical)

ETH

RJ45 (10/100Mbps)

Antenne

LoRa: RP-SMA female connector; LTE/WiFi: Internal antenna

Schutzart

IP30

Enclosure Material

ABS

Gewicht

0.3kg

Dimension

166*127*36mm

Betriebstemperatur

-10 to 55 ˚C

Lagertemperatur

-40°C to +85°C

Luftfeuchtigkeit bei Betrieb

0% to 95% (non-condensing)

Storage Humidity

0% to 95% (non-condensing)

Installationsmethode

Wall Mounting

Computing

MT7628, DDR2 RAM 128 MB

Zertifizierungen

CE, FCC, RCM
