Smart Cattle Tracking Solution
Modernizing Cattle Management with IoT Technology
Executive Summary
This case study examines the implementation of an advanced IoT-based cattle tracking and water management system designed to address critical challenges in modern ranching operations. The solution combines smart ear tags with solar-powered gateways to monitor cattle movement, water consumption patterns, and overall herd health, while being particularly valuable in regions with limited water resources and challenging climate conditions.
Challenge/Problem Statement in Cattle Tracking
Modern ranching operations face several critical challenges that impact productivity, animal welfare, and operational costs. These challenges are particularly acute in regions with harsh climates and limited water resources.
Livestock Water Resource Management
Difficulty Monitoring Water Levels in Multiple, Dispersed Water Troughs:
- Ranches often span thousands of acres with dozens of water points
- Traditional monitoring requires daily physical visits to each trough
- Water levels can drop rapidly during peak consumption periods
- Manual monitoring becomes particularly challenging during extreme weather or at night
- Device benefit: The gateway’s water level sensor integration with IP66 rating enables 24/7 automated monitoring regardless of weather conditions
Risk of Cattle Dehydration During Extreme Weather Conditions:
- Cattle can drink 50-60 liters per day during hot weather
- Water consumption needs can double during heat waves
- Empty troughs can lead to heat stress within hours
- Device benefit: The gateway’s -40°C to +70°C operating range ensures reliable monitoring even in extreme temperatures, while real-time alerts prevent water depletion
Inefficient Water Distribution and Maintenance Scheduling:
- Over-filling wastes water and increases operational costs
- Under-filling risks cattle health and causes herd stress
- Maintenance crews often visit troughs unnecessarily
- Leaks or malfunctions may go undetected for days
- Device benefit: Solar power and 5300 mAh battery ensure continuous monitoring without maintenance visits, while multiple connectivity options (LoRaWAN/NB-IoT/Cat-1) guarantee data transmission even in remote areas
Livestock Herd Health Monitoring
Limited Visibility into Individual Animal Drinking Patterns:
- Healthy cattle typically drink 2-4 times daily
- Changes in drinking patterns often indicate health issues
- Traditional monitoring can’t track individual animal behavior
- Device benefit: i3+ tags’ 765-day battery life enables long-term individual tracking, while 150m transmission range covers typical trough approach patterns
Delayed Identification of Potentially Sick Animals:
- Early symptoms often manifest as changes in water consumption
- Traditional methods rely on visible symptoms
- By the time symptoms are visible, treatment is more difficult
- Each day of delay can cost hundreds in treatment and lost productivity
- Device benefit: The system’s ability to track individual visits through unique tag IDs enables early detection of behavioral changes
Time-consuming Manual Health Checks:
- Traditional monitoring requires physical observation of each animal
- Large herds make individual monitoring impractical
- Night monitoring is particularly challenging
- Stress from frequent human contact impacts cattle welfare
- Device benefit: Continuous automated monitoring through Bluetooth 5.0 technology reduces need for physical checks while providing more consistent data
Livestock Operational Efficiency
Large Areas to Monitor with Limited Personnel:
- Modern ranches can span tens of thousands of acres
- Staff must divide time between multiple critical tasks
- Remote areas may only be checked weekly
- Vehicle costs for monitoring are significant
- Device benefit: Gateway’s support for >500 tags per device enables efficient monitoring of large herds, while multiple connectivity options ensure coverage across vast areas
High Costs Associated with Manual Monitoring:
- Fuel costs for daily trough checks
- Vehicle maintenance expenses
- Labor costs for routine monitoring
- Opportunity costs of staff time
- Device benefit: Solar-powered operation with 1500 mAh daily charging rate ensures autonomous operation, reducing routine maintenance visits
Risk of Losing Cattle in Remote Grazing Areas:
- Cattle can wander into difficult terrain
- Traditional tracking methods are unreliable
- Search operations are expensive and time-consuming
- Lost cattle represent significant financial loss
- Device benefit: The combination of long tag battery life and gateway’s robust communication capabilities enables consistent tracking of cattle movement patterns through water point visits
Technical Solution Architecture for Cattle Tracking
The cattle tracking solution integrates two primary components designed to work seamlessly in challenging ranch environments: smart ear tags and solar-powered gateways. This robust system combines advanced IoT technology with practical ranch management needs.

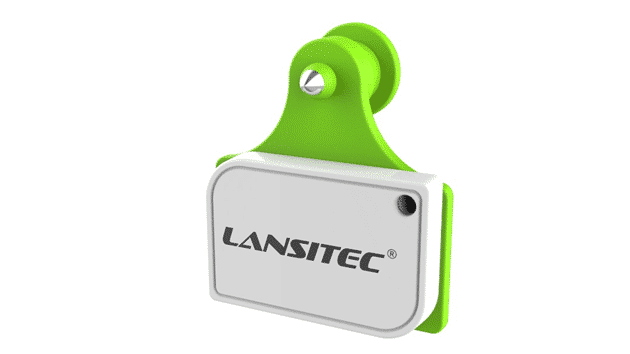

Smart Ear Tag Technology
The i3+ Bluetooth tag serves as the foundation of the tracking system. With its compact design measuring just 38x25x5 mm and weighing 6.2 g, the tag easily attaches to existing cattle ear tags without causing discomfort. The tag's durability is evident in its ability to function in temperatures from -20°C to +70°C, making it suitable for diverse climates.
Power efficiency stands at the heart of the tag's design. Operating on a standard CR2032 battery with 230 mAh capacity, the tag achieves remarkable longevity with an average current draw of only 15μA at 0dBm. This translates to an impressive 765-day battery life under normal operating conditions, eliminating the need for frequent maintenance. The tag's Bluetooth 5.0 technology maintains consistent communication with a 150-meter line-of-sight transmission range, ensuring reliable tracking even when cattle are approaching water sources from various directions.
i3 Portable Bluetooth Tag
The tag continuously advertises iBeacon messages according to settings. It advertises built-in 3D Accelerometer parameters when it is moved. The compact size makes it convenient to install. It helps clients better manage the location, status and usage rate of the asset, and location of personnel.
Solar-Powered Gateway Infrastructure
The gateway system represents a technological breakthrough in ranch infrastructure. Each unit combines solar power generation with robust communication capabilities and environmental hardening. The 3 W solar panel works in conjunction with a 5300 mAh Li-ion battery to ensure uninterrupted operation. This power system achieves a maximum charging rate of 1500 mAh per day, while the battery provides sufficient backup for up to one month of operation even during continuous rainy periods.
Environmental resilience is a key feature of the gateway design. With an IP66 rating, the unit withstands harsh weather conditions, while its operating temperature range of -40°C to +70°C exceeds typical ranch environment requirements. The gateway's Bluetooth reception sensitivity of -96 dBm ensures reliable data collection from tagged cattle, while its multiple connectivity options provide flexibility in data transmission.
Solar Bluetooth Gateway
(LoRaWAN / NB-IoT / Cat-1)
Lansitec Solar Bluetooth Gateway receives nearby Bluetooth beacon messages, and then transmit to a LoRaWAN gateways after restructure the data. It is powered with robust solar film and a 5300mAh rechargeable battery.
Connectivity Solutions
The gateway's versatile communication options accommodate various ranch locations and infrastructure availability:
The LoRaWAN variant excels in rural settings with existing LoRaWAN infrastructure. Operating across multiple frequency bands (US915, AU915, EU868, and others), it achieves impressive sensitivity levels of -139 dBm at SF12. With RF power up to 22 dBm (expandable to 30 dBm), each gateway can effectively handle over 500 tags, making it suitable for large herd operations. For ranches in areas with cellular coverage, the NB-IoT/LTE-M version offers global band support with data rates reaching 127 kbps downlink and 158.5 kbps uplink for NB-IoT Cat NB2. This option leverages existing cellular infrastructure while maintaining low power consumption.
The Cat-1 variant provides enhanced data throughput for operations requiring more frequent updates or additional sensor data. Supporting regional bands across North America, Europe, Africa, China, India, and Latin America, it delivers reliable connectivity while maintaining the system's core monitoring capabilities.
Integrated Water Monitoring
Each gateway integrates seamlessly with water level sensors, creating a comprehensive monitoring system. The gateway's high IP rating and broad temperature tolerance ensure consistent water level monitoring regardless of environmental conditions. Real-time data transmission through any of the available connectivity options enables prompt response to water availability issues, while the solar power system ensures continuous operation without maintenance visits.
This technical architecture creates a self-sustaining monitoring system that combines robust hardware with flexible connectivity options. The result is a reliable, low-maintenance solution that addresses the core challenges of modern ranch operations while providing a foundation for future expansion and enhancement.
Network Options Comparison
LoRaWAN
NB-IoT/LTE-M
Cat-1
Frequency: Multiple bands (US915, AU915, EU868, etc.)
Global band support
Regional band support for global deployment
Sensitivity: -139 dBm @SF12
Data Rate: Cat NB2: 127 kbps (DL), 158.5 kbps (UL)
Higher data throughput
Maximum RF Power: 22dBm (30 dBm high power option)
Extensive carrier network coverage
Better real-time capabilities
Implementation Details
The deployment of the cattle tracking solution follows a systematic approach that ensures reliable operation while minimizing disruption to existing ranch operations. The system architecture spans three interconnected layers that work together to deliver comprehensive monitoring and management capabilities.
At the edge layer, the implementation begins with the careful installation of i3+ tags on the cattle. Rather than requiring separate ear tags, the system’s tags attach to existing ear tags, reducing stress on the animals and simplifying the deployment process. Each tag undergoes activation and testing to ensure proper operation before the animal rejoins the herd. During this process, tags are registered in the management system, creating a digital identity for each animal that will be tracked throughout its lifecycle.
The gateway installation represents a critical phase of the implementation. Strategic placement near water troughs requires careful consideration of several factors. The solar panels must be oriented to maximize daily charging potential, while the gateway’s position must ensure optimal Bluetooth coverage of the approaching paths cattle typically use. The installation team integrates water level sensors with the gateway, calibrating them to provide accurate readings across different trough designs and sizes.
LoRaWAN
Network connectivity configuration varies based on the chosen communication option. For ranches implementing LoRaWAN, the process includes frequency band selection and network parameter optimization to ensure reliable coverage across the operation’s territory. The gateway’s high sensitivity enables effective operation even in challenging terrain, while its support for multiple bands ensures compliance with regional regulations.
NB-IoT/LTE-M
When deploying NB-IoT/LTE-M or Cat-1 variants, the implementation focuses on carrier network integration. The gateway’s flexible band support facilitates deployment across different regions, while its robust design ensures reliable operation regardless of the chosen network technology. SIM card installation and network registration proceed according to local carrier requirements, with options for both physical SIM cards and eSIM configuration.
The system configuration phase establishes operational parameters that balance monitoring effectiveness with resource efficiency. Gateway reporting intervals are tailored to match the ranch’s management requirements while optimizing power consumption. Alert thresholds for water levels and animal behavior receive careful calibration based on herd size, climate conditions, and seasonal variations. The configuration process includes setting up data collection parameters that ensure meaningful insights without overwhelming the system’s storage or transmission capabilities.
Data flow testing verifies the entire system’s operation, from tag transmission through gateway collection and network delivery to the central monitoring platform. This testing phase includes verification of alert systems and automated reporting functions, ensuring that ranch managers receive timely notifications about relevant events or potential issues.
The implementation process emphasizes scalability and future adaptability. The system’s modular design allows for easy addition of new tags as the herd grows or new water points as grazing patterns change. Each gateway’s ability to handle over 500 tags ensures that the infrastructure can scale efficiently with ranch operations.
Staff training constitutes the final phase of implementation. Ranch personnel receive instruction in system operation, basic troubleshooting, and maintenance procedures. This training ensures that the ranch can maximize the benefits of the technology while maintaining system effectiveness over the long term.
Throughout the implementation process, the focus remains on creating a robust, reliable monitoring system that enhances ranch operations without creating additional complexity. The result is a seamless integration of advanced technology with traditional ranching practices, delivering immediate operational benefits while establishing a foundation for future technological advancement.
Benefits and Outcomes
Immediate Benefits
Enhanced Water Management:
The transformation in water resource management becomes evident within days of system deployment. Ranch managers gain unprecedented visibility into water consumption patterns across all troughs simultaneously. Real-time water level monitoring eliminates the uncertainty that traditionally plagues livestock water management. When water levels drop below configured thresholds, instant alerts enable rapid response, preventing potential crises before they develop. This proactive approach has demonstrated up to 40% reduction in emergency water deliveries and virtually eliminated instances of empty troughs.
The system’s ability to track consumption patterns leads to more efficient water distribution. By understanding peak usage times and seasonal variations, ranches can optimize their water delivery schedules. This data-driven approach typically reduces water waste by 25-30% while ensuring consistent availability. The solar-powered gateways maintain vigilant monitoring regardless of weather conditions, providing reliable data even during extreme weather events when water management becomes most critical.
Improved Herd Health Monitoring:
Individual animal tracking revolutionizes health monitoring capabilities. By establishing baseline drinking patterns for each animal, the system quickly identifies potential health issues through changes in water consumption behavior. This early warning system typically detects health problems 2-3 days before visible symptoms appear, dramatically improving treatment outcomes and reducing veterinary costs.
The continuous monitoring capability proves particularly valuable during high-risk periods such as calving season or extreme weather conditions. Rather than relying on periodic visual checks, ranch managers receive real-time insights into animal behavior patterns. This comprehensive monitoring has shown to reduce mortality rates by up to 20% through earlier intervention and more targeted health management strategies.
Operational Efficiency:
The impact on daily operations is substantial and immediate. The automation of water level monitoring alone typically saves 3-4 hours of staff time per day that would otherwise be spent on manual checks. This time savings allows ranch personnel to focus on more valuable activities such as herd management and infrastructure maintenance.
Vehicle usage for routine monitoring decreases significantly, with most ranches reporting 40-60% reduction in monitoring-related travel. This reduction translates directly to lower fuel costs and reduced vehicle maintenance expenses. More importantly, it minimizes the environmental impact of ranch operations while improving overall work efficiency.
Long-term Benefits
Data-Driven Decision Making:
Over time, the accumulated data becomes an invaluable asset for ranch management. Historical analysis of drinking patterns reveals insights into seasonal behavior changes, helping optimize water point placement and herd rotation strategies. Ranches using the system for over a year report improved grazing distribution and more effective use of available pasture resources.
The system’s comprehensive data collection enables sophisticated predictive analytics. Patterns in water consumption often correlate with weather changes, breeding cycles, and overall herd health trends. This information allows ranches to anticipate and prepare for changing conditions rather than merely reacting to them.
Cost Reduction:
The financial benefits compound over time through multiple channels. Direct cost savings from reduced vehicle usage and labor efficiency typically result in ROI within the first 12-18 months. However, the broader economic impact becomes more significant through improved herd health management and reduced mortality rates.
Insurance companies have begun recognizing the risk-reduction benefits of automated monitoring systems, with some offering premium reductions for ranches using comprehensive tracking solutions. The documented improvement in herd management and reduced loss rates strengthen negotiating positions for both insurance and financing.
Sustainable Operations:
The system’s solar-powered infrastructure aligns with growing emphasis on sustainable ranching practices. Beyond the immediate environmental benefits of reduced vehicle usage, the improved water management capabilities support more sustainable resource utilization. Ranches implementing the system report average water savings of 20-30% through reduced waste and improved distribution efficiency.
Long-term data collection supports environmental impact assessment and certification requirements, increasingly important for market access and regulatory compliance. The system’s ability to document responsible resource management practices provides valuable support for sustainability certifications and environmental stewardship programs.
The combination of immediate operational improvements and long-term strategic benefits creates compelling value for ranching operations of all sizes. As the system continues to collect data and prove its worth through measurable outcomes, the initial investment is consistently justified through tangible returns in efficiency, sustainability, and profitability.
System Expansion Capabilities
Hardware Scalability
Feature Expansion
Data Analytics Enhancement
Support for >500 tags per gateway
Integration with weather monitoring
Machine learning for behavior prediction
Easy addition of new water points
Addition of temperature sensors
Advanced health monitoring algorithms
Modular system architecture
Integration with feeding systems
Integrated breeding management
Conclusion
The smart cattle tracking solution provides a comprehensive answer to modern ranching challenges, particularly in water-scarce regions. By combining robust hardware with flexible connectivity options and advanced monitoring capabilities, the system delivers immediate operational benefits while laying the foundation for future technological advancement in livestock management.
